Coal Slurry Dewatering Press Filter Machine PriceWaste generation
Waste mud is one of the major sources of pollution in the oil and gas industry. It is a kind of steady-state colloidal suspension system containing clay, weighting materials, various chemical treatment agents, sewage, sewage oil and cuttings. The main components harmful to the environment are hydrocarbons, salts, various polymers and wood. Sulfonic acid salts, certain metal ions (mercury, copper, arsenic, chromium, zinc and lead) and impurities in barite. In order to prevent the drilling sludge from polluting the environment, it must be treated.
|Filter plate number|
|Cubage of filter chamber|

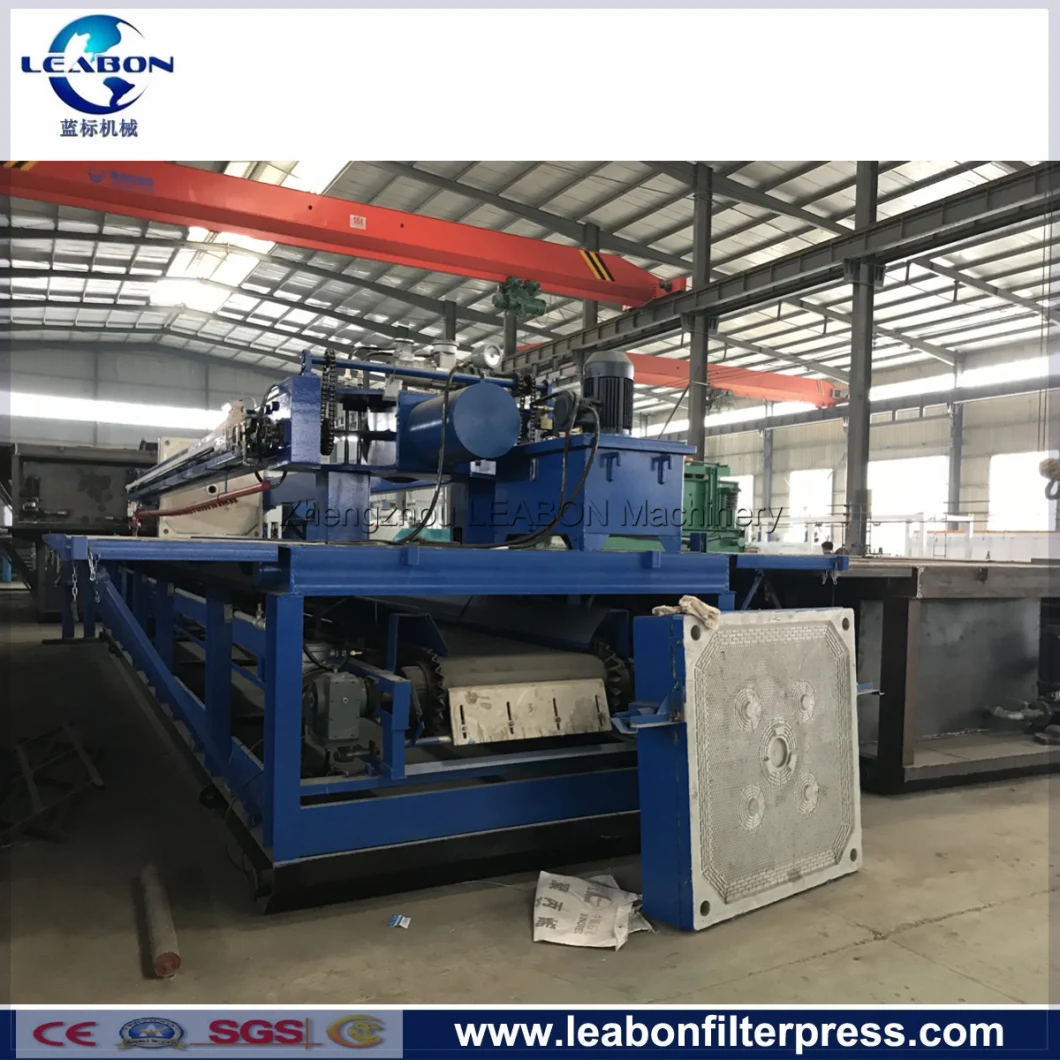

Complete set of equipment base
Supporting the whole set of equipment and weight, the gravity of the base frame reduces the center of gravity of the whole device, enhances the stability, increases the contact surface between the base frame and the ground, reduces the uneven sinking on the soft ground, and improves the lifting of the base frame. Strength ensures safety. The guide plate and hydraulic station are all concentrated on the base frame. The layout is reasonable, the structure is compact, and the land is saved, so that the scene is in order.
1 main frame
The frame base is armored and welded with 250 I-beam. The base has a large contact area with the ground, which reduces uneven sinking on the soft ground. A hoisting shaft and flange are welded to the base to ensure the safety of the lifting.
2 ceramic double cylinder pump
The pump is specially designed for the oil field filter press pump, which is a hydraulically driven double-cylinder double-acting ceramic plunger mud pump with ceramic alumina plunger and combined sealing. The utility model has the advantages of simple structure, stable operation, reliable work, low noise, high working pressure, small pressure fluctuation, small volume, light weight, convenient operation and installation, long service life and the like. The pump cooling system is applied in the oil field, and is equipped with two buffer water tanks and a transfer pump, which completely solves the problem of landing of the water source and meets the requirements of the oil field mud not falling. The reciprocating pump feed valve, pipe and mixing tank are welded and installed. The DN100 hammering of the discharge port is convenient and quick to connect with the filter press inlet.
3 dosing mixing system and dosing pump
The dosing and mixing system also uses WNJ-7, 5 stirrer, power 7, 5KW explosion-proof, and the dosing pump uses vertical multi-stage centrifugal pump. Dosing pipes and valves are all installed.
filter press can be widely used to separate solid and liquid in petroleum chemical industry and other industries.
Factory and Workshop:
Other filter press:
we supply various series of filter presses, including chamber filter press, plate and frame filter press, stainless steel filter press, lab type filter press, automatic filter press, water washing filter press, cast iron filter press, vertical filter press, etc.
What kind of filter press can you produce?
Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.
What is the payment terms?
T/T , 50% advance payment, 50% to be paid before delivery of goods .
Do you accept OEM?
Yes, we can manufacture according to your requirement.
What is the machine warranty?
1 year warranty.
a. Sales team will suggest suitable project.We can design and manufacture products as per your special requirements.
b. Technical team analyse and design for you.
a. Assist you build up factory .
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
(3) Payment terms
T/T, L/C, Western Union
Usually, 50% payment in advance, 50% payment before delivery.
